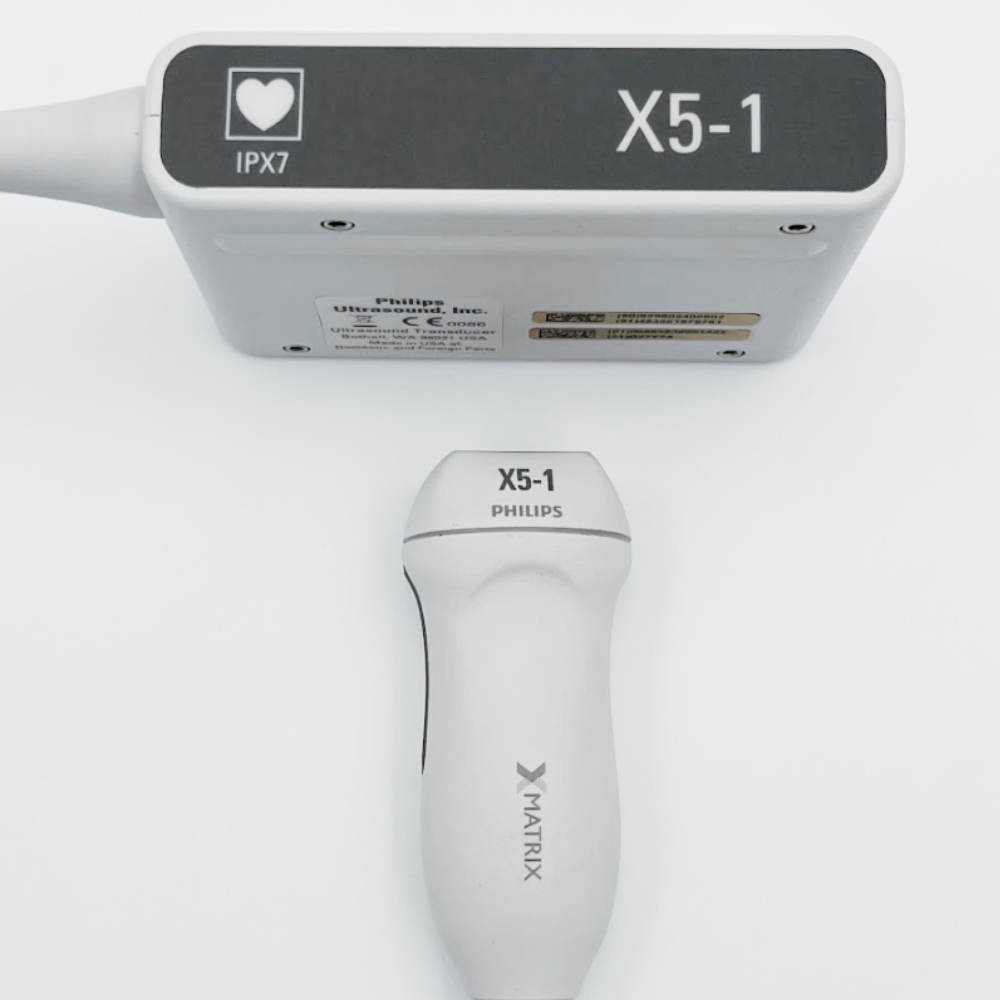

Philips X5-1 xMATRIX PureWave Ultrasound Transducer

Philips X5-1 xMATRIX PureWave Ultrasound Transducer

Elevate your diagnostic capabilities with the Philips X5-1 xMATRIX PureWave Ultrasound Transducer, available at Anchor Medical Solutions. This advanced probe is designed for exceptional cardiac and vascular imaging, delivering unparalleled clarity and detail for confident diagnoses.

Key Features and Benefits:

  • Advanced xMATRIX and PureWave Crystal Technology: Experience superior image quality with Philips' cutting-edge technology. The X5-1 boasts 3040 elements, enabling precise and detailed visualization.
  • Wide Frequency Range (5-1 MHz): Versatile imaging across a broad range of applications, from adult and pediatric cardiac to abdominal vascular and transcranial Doppler (TCD).
  • Comprehensive Imaging Modes: The X5-1 supports a wide range of imaging modes, including 2D, M-Mode, Color M-Mode, PW, CW, Color, TDI, TDI PWD, xPlane, Live 3D, Live 3D Color, Harmonic Imaging, Advanced XRES, 2D/Live 3D LVO, iRotate and xPLANE. This extensive feature set allows for in-depth analysis and detailed visualization.
  • Volume Sector Imaging: Capture comprehensive volumetric data with a 98° x 98° volume field of view, providing a complete picture of the heart and vascular structures.
  • Optimized for Cardiac and Vascular Applications: Specifically designed for adult and pediatric cardiac assessments, abdominal vascular studies, and TCD examinations.
  • Compact and Ergonomic Design: The X5-1's physical dimensions (9.2 x 3.9 x 2.9 cm) ensure comfortable handling and ease of use during lengthy examinations.
  • High Density Array: The Sector, Volume Sector array type, combined with the proprietary aperture, and high element count, provides exceptional image resolution.
  • 90° Field of View: Excellent wide field of view for optimal anatomical visualization.

Applications:

  • Adult Cardiac Imaging
  • Pediatric Cardiac Imaging
  • Abdominal Vascular Imaging
  • Transcranial Doppler (TCD)

Technical Specifications:

  • Technology: xMATRIX, PureWave
  • Number of Elements: 3040
  • Frequency Range: 5 - 1 MHz
  • Array Type: Sector, Volume Sector
  • Field of View: 90°
  • Volume Field of View: 98° x 98°
  • Imaging Modes: 2D, M-Mode, Color M-Mode, PW, CW, Color, TDI, TDI PWD, xPlane, Live 3D, Live 3D Color, Harmonic Imaging, Advanced XRES, 2D/Live 3D LVO, iRotate and xPLANE
  • Physical Dimensions: 9.2 x 3.9 x 2.9 cm (3.6 x 1.5 x 1.1 in) LWD

Condition:

  • Available in both new and used conditions. Please select your preferred option.

Why Choose Anchor Medical Solutions?

At Anchor Medical Solutions, we are committed to providing high-quality medical equipment to healthcare professionals. Our Philips X5-1 ultrasound transducers are thoroughly inspected to ensure optimal performance and reliability.
